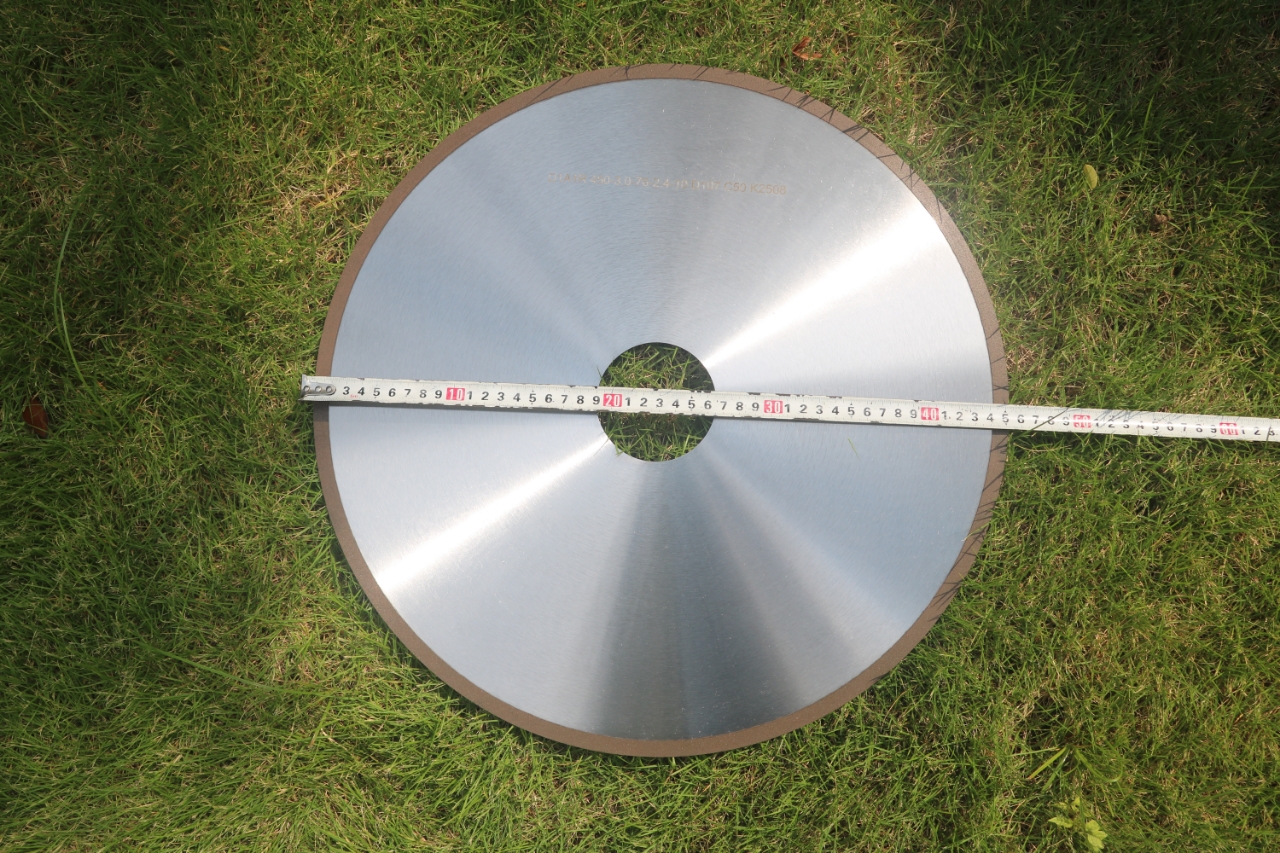

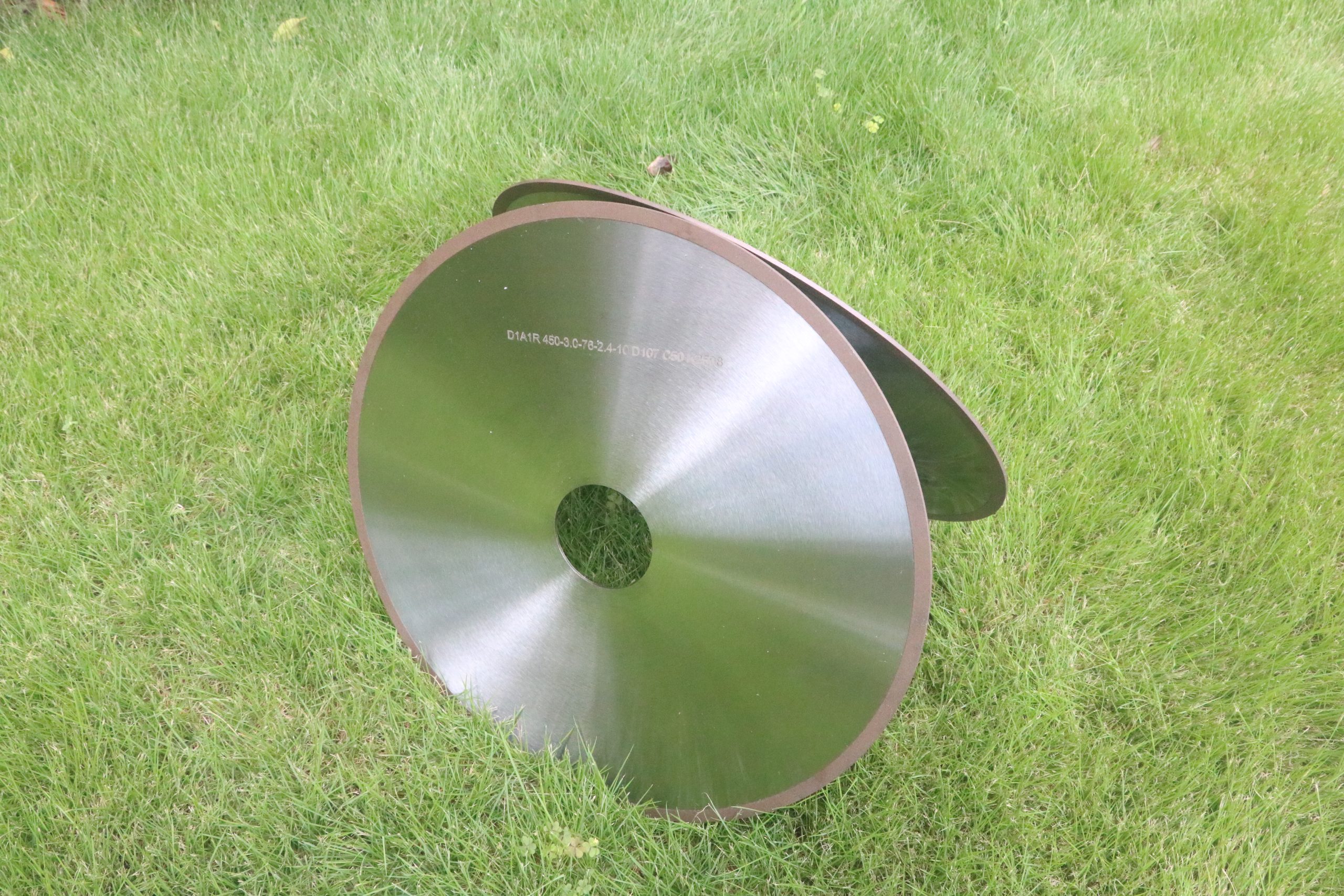

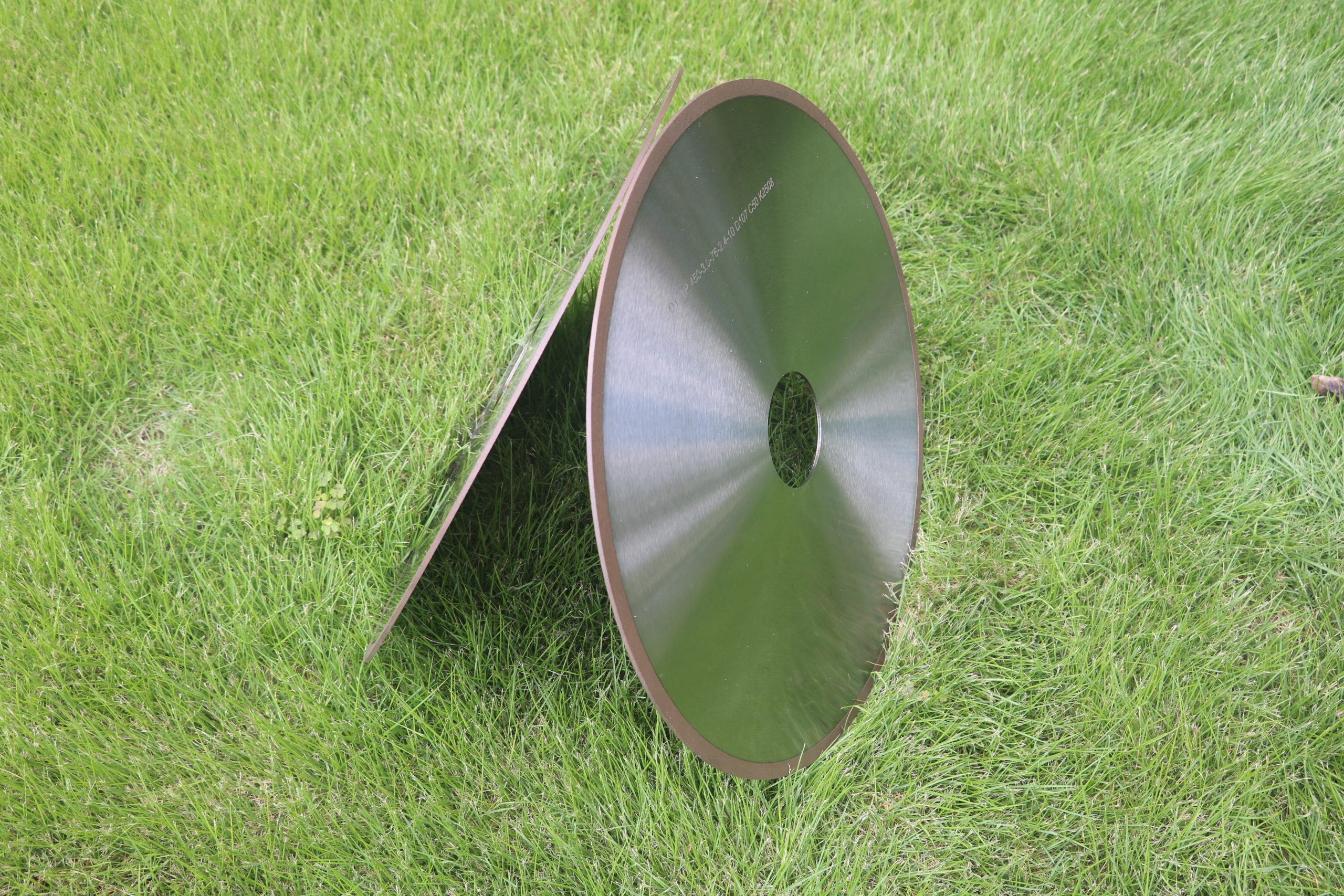

Resin bond diamond CBN cutting wheels for slotting and cutting of ceramics, carbide, magnetic materials, glass, steel and cast iron.
Name: cut off grinding wheel
Type: 1A1, 1A1R, 3A1, 14A1, 1A8
MOQ: 2pcs
Send us email
forever@forever-superabrasives.comCall us
8619937107349Resin bond diamond cutting wheels are compound of steel plate and superabrasive work layer. The steel plate has high strength and high rigidity. They are generally used for deep cutting and grooving.
Resin bond diamond cutting wheels are mainly used for slotting and cutting of ceramics, crystal, quartz, gems, carbide, magnetic materials, electrical light wave glass tube and optical glass；Resin bond CBN cutting wheels are mainly used for slotting and cutting of tool steel, mould steel, bearing steel, heat resistance steel, stainless steel and cast iron.
|
D |
50~100 |
101~150 |
151~200 |
201~300 |
301~400 |
|
T |
|
|
|
|
|
|
0.2 |
√ |
|
|
|
|
|
0.3 |
√ |
|
|
|
|
|
0.4 |
√ |
|
|
|
|
|
0.5 |
√ |
√ |
|
|
|
|
0.6 |
√ |
√ |
|
|
|
|
0.7 |
√ |
√ |
√ |
|
|
|
0.8 |
√ |
√ |
√ |
√ |
|
|
1.0 |
√ |
√ |
√ |
√ |
|
|
1.2 |
√ |
√ |
√ |
√ |
√ |
|
1.5 |
|
√ |
√ |
√ |
√ |
|
2.0 |
|
|
√ |
√ |
√ |
|
2.5 |
|
|
|
√ |
√ |
|
3.0 |
|
|
|
|
√ |
|
H |
12.7、19.05、20/22.225、30、30.75、32、40、50.8、60、75、90、127 |
||||
Other specification can be made according to customers' requirements.
